Electric Vehicles: Stunning How They Work

Electric vehicles (EVs) work by using an electric motor powered by a rechargeable battery pack, replacing the traditional gasoline engine and fuel tank. This means they produce zero tailpipe emissions, offering a cleaner and often more efficient way to drive.

Have you ever found yourself wondering what makes an electric car go? It’s a question many of us have as we see more EVs on the road. The idea of a car running without a drop of gasoline can seem a bit like magic. But it’s actually quite straightforward, and understanding it can make the switch to electric feel much less daunting. Think of it like this: instead of a noisy engine burning fuel, EVs use electricity stored in a battery to power a motor that turns the wheels. It’s a simpler, cleaner, and often more exciting way to drive. Let’s break down exactly how this modern marvel operates, step by step, so you can feel confident about this amazing technology.

The Heart of the EV: The Electric Motor

At the core of every electric vehicle is its electric motor. Unlike the complex internal combustion engine (ICE) found in gasoline cars, the electric motor is remarkably simple. It’s the component that directly drives the wheels, translating electrical energy into mechanical motion.

Think of a motor like a spinning top. When you give it a push, it rotates. An electric motor does something similar, but it uses the principles of electromagnetism to create that spin. Inside the motor, there are two main parts: the stator and the rotor.

• Stator: This is the stationary outer part of the motor. It contains coils of wire. When electricity flows through these coils, it creates a magnetic field.
• Rotor: This is the part that spins. It’s usually made of magnets or coils of wire that also generate a magnetic field.

The magic happens when the magnetic field generated by the stator interacts with the magnetic field of the rotor. By carefully controlling the flow of electricity to the stator’s coils, the motor essentially “pushes” and “pulls” the rotor, causing it to spin. This spinning motion is then transferred to the wheels, propelling the car forward.

The beauty of an electric motor is its efficiency and responsiveness. They can deliver instant torque, meaning you get maximum power from a standstill, which is why EVs often feel so quick off the line. Plus, they have very few moving parts compared to an ICE, leading to less wear and tear and fewer maintenance headaches.

The Energy Source: The Battery Pack

If the motor is the heart, then the battery pack is the lifeblood of an electric vehicle. This is where the energy is stored, ready to be sent to the motor. Modern EVs primarily use lithium-ion battery packs, similar to what you find in your smartphone or laptop, but on a much larger and more sophisticated scale.

A battery pack isn’t just a single big battery. It’s actually made up of hundreds or even thousands of smaller individual battery cells. These cells are arranged in modules, and these modules are then assembled into the complete battery pack. This modular design offers several advantages, including:

• Scalability: Manufacturers can adjust the size and capacity of the battery pack by adding or removing modules to meet different vehicle range and performance needs.
• Thermal Management: It allows for better control of the battery’s temperature, which is crucial for its performance, longevity, and safety.
• Serviceability: If one module fails, it can potentially be replaced without needing to swap out the entire, very expensive, battery pack.

The “size” of an EV battery is measured in kilowatt-hours (kWh). This is similar to how you measure the capacity of a fuel tank in gallons or liters. A larger kWh number generally means the car can store more energy and therefore travel further on a single charge.

Key Components of a Battery Pack:

Component	Function
Battery Cells	The fundamental units that store and release electrical energy.
Battery Modules	Groups of cells connected together to form a larger unit.
Battery Management System (BMS)	The “brain” of the battery pack. It monitors and controls charging, discharging, temperature, and the overall health of the cells to ensure safety and optimal performance.
Cooling System	Manages the temperature of the battery pack, often using liquid or air cooling, to prevent overheating or extreme cold.
Casing/Enclosure	A robust protective shell that houses the battery components, often designed to be impact-resistant and waterproof.

The lithium-ion chemistry used in these batteries is chosen for its high energy density (meaning it can store a lot of energy in a small space and weight) and its ability to be recharged many times.

From Wall to Wheels: The Charging Process

So, how does that stored electricity get to the motor? It all starts with charging. When you plug in your EV, you’re essentially refilling that battery pack. There are different ways to charge, each with varying speeds and power levels.

1. Alternating Current (AC) Charging (Level 1 & Level 2):

• Level 1: This is the most basic form of charging, using a standard household outlet (like the one you plug your toaster into). It’s slow but convenient for overnight charging at home if you don’t drive many miles daily. It converts AC power from your home’s grid into DC power that the battery can store.
• Level 2: This is what most people use for home charging and is also common at public charging stations. It requires a dedicated 240-volt circuit, similar to what an electric dryer uses. It charges significantly faster than Level 1 because it can deliver more power. The car’s onboard charger handles the AC to DC conversion.

2. Direct Current (DC) Fast Charging (Level 3):

• This is the fastest way to charge an EV. DC fast chargers bypass the car’s onboard charger and deliver DC power directly to the battery pack. These are typically found at public charging stations along highways and are designed for quick top-ups on longer journeys. They can add a significant amount of range in a relatively short time.

Regardless of the charging method, the electricity flows into the battery pack and is managed by the Battery Management System (BMS). The BMS ensures the battery is charged safely and efficiently, preventing overcharging and monitoring the health of each cell.

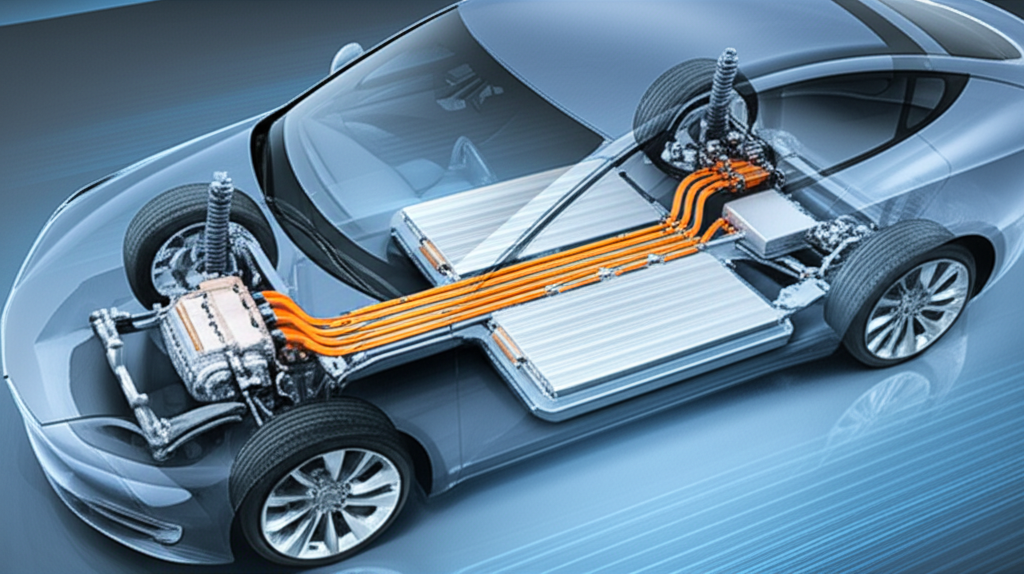

The Powertrain: Connecting Battery to Wheels

Once the battery has stored electrical energy, it needs to be delivered to the electric motor to make the car move. This is where the EV’s powertrain comes into play. It’s much simpler than a gasoline car’s powertrain, which includes a transmission with multiple gears, a driveshaft, and an axle.

An EV powertrain typically consists of:

• The Battery Pack: As we’ve discussed, this stores the energy.
• The Power Electronics Controller (Inverter): This is a crucial component. Batteries store Direct Current (DC) power, but many electric motors are designed to run on Alternating Current (AC). The inverter’s job is to convert the DC power from the battery into AC power for the motor. It also controls the speed of the motor by adjusting the frequency and voltage of the AC power.
• The Electric Motor: This converts electrical energy into rotational mechanical energy.
• The Gearbox (Often Single-Speed): Unlike gasoline cars that need complex multi-gear transmissions to keep the engine in its optimal power band, most electric motors produce their peak torque from 0 RPM and have a very wide operating range. This means they can often get by with a simple, single-speed reduction gearbox. This gearbox simply reduces the high speed of the motor to a lower speed suitable for the wheels, while also increasing torque.
• The Drive Axle: This transmits the rotational power from the motor (via the gearbox) to the wheels, making the car move.

This streamlined design is a major reason for the efficiency and smooth driving experience of EVs. There are fewer parts to break, less energy lost in transmission, and no need for gear shifts that can interrupt the flow of power.

Regenerative Braking: Capturing Energy

One of the most fascinating and beneficial features of electric vehicles is regenerative braking. It’s a clever system that helps improve efficiency and extend driving range.

Normally, when you apply the brakes in a car, friction pads press against brake discs, converting the car’s kinetic energy (energy of motion) into heat, which is then lost to the atmosphere. Regenerative braking does something different.

When you lift your foot off the accelerator pedal or press the brake pedal lightly, the electric motor actually reverses its function. Instead of using electricity to spin the wheels, the momentum of the car spinning the wheels causes the motor to act like a generator. This process:

• Slows the car down: Much like traditional braking.
• Generates electricity: This electricity is then sent back to the battery pack, recharging it slightly.

This means that every time you slow down, you’re recapturing some of the energy that would otherwise be wasted as heat. The intensity of regenerative braking can often be adjusted by the driver, allowing for a “one-pedal driving” experience where simply lifting off the accelerator is enough to slow the car down considerably in most situations. This not only saves energy but can also reduce wear on the traditional friction brakes, as they are used less frequently.

You can learn more about how electric motors and generators work together from resources like the U.S. Department of Energy’s Alternative Fuels Data Center:

How Electric Cars Work – Alternative Fuels Data Center

Putting It All Together: The Driving Experience

So, how does all this translate to the driving experience? It’s quite different from a traditional gasoline car, and most people find it to be a very pleasant upgrade.

• Instant Torque: As soon as you press the accelerator, the electric motor is delivering its full power. This gives EVs a lively and responsive feel, making them feel very quick, especially at lower speeds.
• Quiet Operation: Without a rumbling engine, EVs are incredibly quiet. This contributes to a more relaxed and comfortable cabin environment.
• Smooth Acceleration: Because there are no gear changes happening, acceleration is seamless and continuous.
• Regenerative Braking: Mastering one-pedal driving can be a fun and efficient way to navigate traffic.
• Simpler Maintenance: With fewer moving parts, EVs generally require less maintenance. No oil changes, no spark plugs, no exhaust systems to worry about.

EV vs. Gas Car: A Quick Comparison

To really appreciate how EVs work, it helps to see how they stack up against their gasoline counterparts. Here’s a simplified look at the core differences:

Feature	Electric Vehicle (EV)	Gasoline Vehicle (ICE)
Power Source	Rechargeable Battery Pack	Gasoline Fuel Tank
“Engine”	Electric Motor	Internal Combustion Engine (ICE)
Fueling/Charging	Plug-in charging at home or public stations	Refueling at gasoline stations
Transmission	Typically single-speed gearbox	Multi-speed automatic or manual transmission
Emissions	Zero tailpipe emissions	Tailpipe emissions (CO2, NOx, etc.)
Key Maintenance	Tires, brakes, cabin filter, battery coolant	Oil changes, spark plugs, filters, exhaust, engine coolant, transmission fluid
Energy Conversion Efficiency	High (often 75-90% of electrical energy to wheels)	Lower (around 20-35% of fuel energy to wheels)

This table highlights the fundamental differences in how these vehicles convert stored energy into motion and the implications for their operation and upkeep.

Frequently Asked Questions (FAQs)

Q1: How far can an electric car travel on a single charge?

A1: The range of an EV varies significantly by model and battery size. Many new EVs offer ranges of 200-300 miles (about 320-480 km) on a full charge, with some exceeding 400 miles (about 640 km). Factors like driving speed, temperature, and using climate control can affect the actual range.

Q2: How long does it take to charge an electric car?

A2: Charging times depend on the charger type and the car’s battery size. Level 1 charging (standard outlet) can take overnight or longer. Level 2 charging (240V) typically adds 20-30 miles of range per hour. DC fast charging can add 100-200 miles of range in about 20-30 minutes, depending on the car and charger.

Q3: Are electric car batteries expensive to replace?

A3: While EV batteries are a significant component, their lifespan is typically very long, often lasting the life of the vehicle (10-20 years or more). Manufacturers usually offer long warranties on battery packs (e.g., 8 years or 100,000 miles). Replacement costs are decreasing as technology improves and production scales up.

Q4: Do EVs work in cold weather?

A4: Yes, EVs work in cold weather, but their range can be reduced. Cold temperatures affect battery chemistry, making them less efficient. Additionally, using the heater consumes energy. However, many EVs have advanced battery thermal management systems to mitigate these effects, and technologies like heat pumps are more efficient for cabin heating.

Q5: What is the difference between an EV, a hybrid, and a plug-in hybrid (PHEV)?

A5: An EV (Electric Vehicle) runs solely on electricity from a battery. A hybrid (HEV) uses both a gasoline engine and an electric motor, but the battery is charged by the engine and regenerative braking, not by plugging in. A plug-in hybrid (PHEV) is a bridge: it has both a gasoline engine and a battery that can be charged by plugging in, allowing for a certain all-electric range before the gasoline engine kicks in.

Q6: Where can I charge an electric car?

A6: You can charge EVs at home (using a Level 1 or Level 2 charger), at public charging stations (often found in parking lots, shopping centers, and along highways), and at workplaces. Many charging networks have apps that show you available charging locations and their status.

Conclusion: The Future is Electric

Understanding how electric vehicles work demystifies the technology and highlights the many advantages they offer. From the elegant simplicity of the electric motor and the robust design of the battery pack to the efficient energy transfer and the innovative regenerative braking, EVs represent a significant leap forward in automotive technology. They offer a quieter, smoother, and often more exhilarating driving experience, all while contributing to cleaner air and a more sustainable future.

As you can see, it’s not magic – it’s smart engineering. By replacing complex mechanical systems with efficient electrical ones, EVs deliver performance and practicality in a way that’s truly impressive. Whether you’re considering your first EV or are simply curious about the technology, knowing the basics of how they operate can give you the confidence to embrace this exciting shift in transportation.
